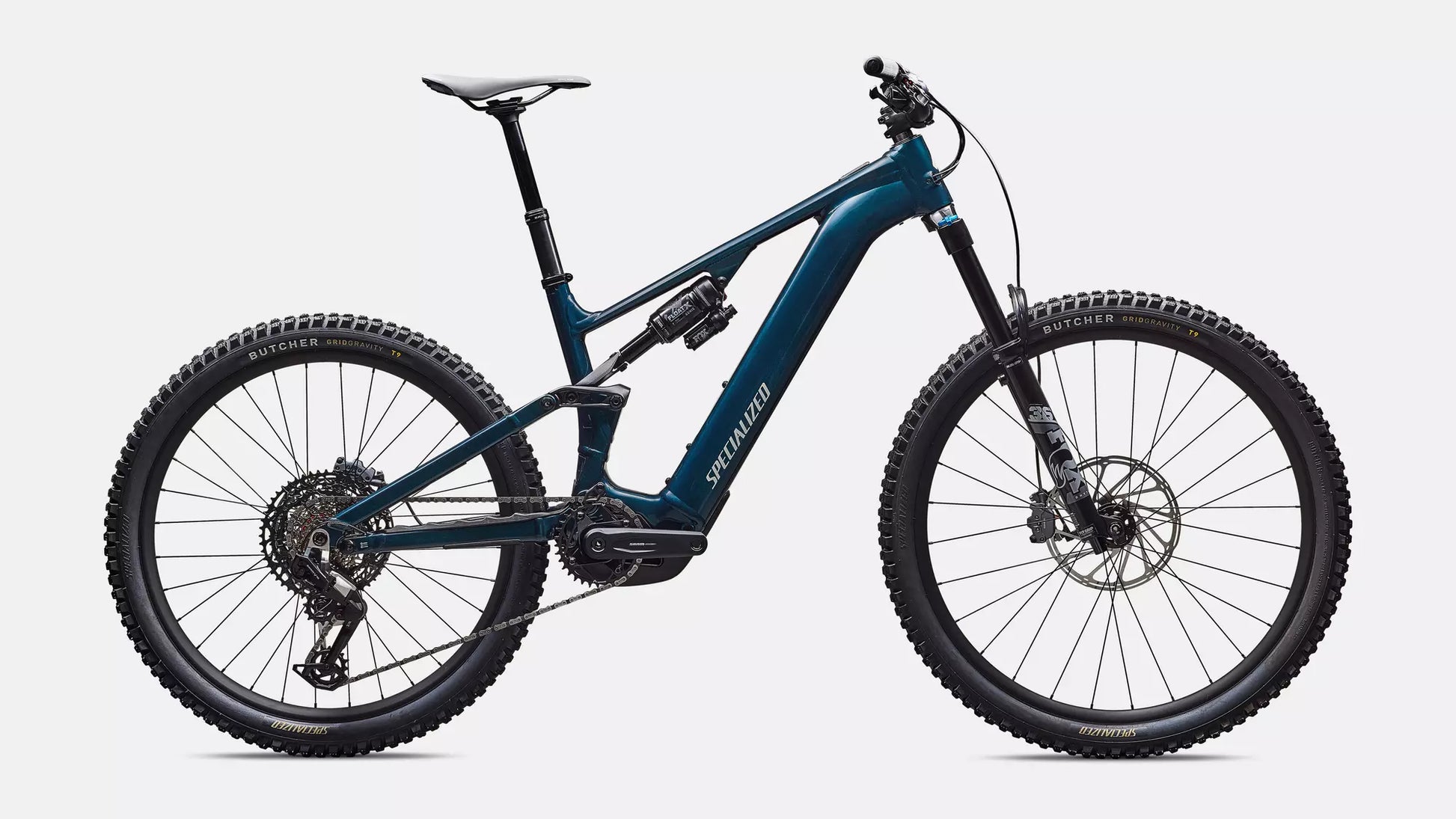

Specialized LEVO COMP ALLOY G4 DEEP LAKE METALLIC/DUNE WHITE S4

E-Bike
Motor

Specialized 3.1 Motor, 105Nm torque, 810W power

Battery

840Wh battery

UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

Charger

Specialized 4amp charger

Frameset
Frame

All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Seat Binder

Alloy, 38.6mm

Suspension
Rear Shock

S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT X Performance, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm

Fork

FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle

Brakes
Front Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake

SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain
Shift Levers

SRAM 90 trigger, 12-speed, single click

Rear Derailleur

SRAM Eagle 90 T-Type

Cassette

SRAM 12-speed,10-52t

Chain

SRAM 70 Transmission 12-Speed Flattop Chain

Crankset

SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires
Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes

DT Swiss Industry

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"

Inner Tubes

Standard, Presta valve

Cockpit
Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise

Grips

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm

Accessories
SWAT

SWAT internal downtube storage

Product Details
Product ID

221343

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries

Weight
Weight

25.70 kg (56 lb, 11.2 oz)

Weight Size

S4
